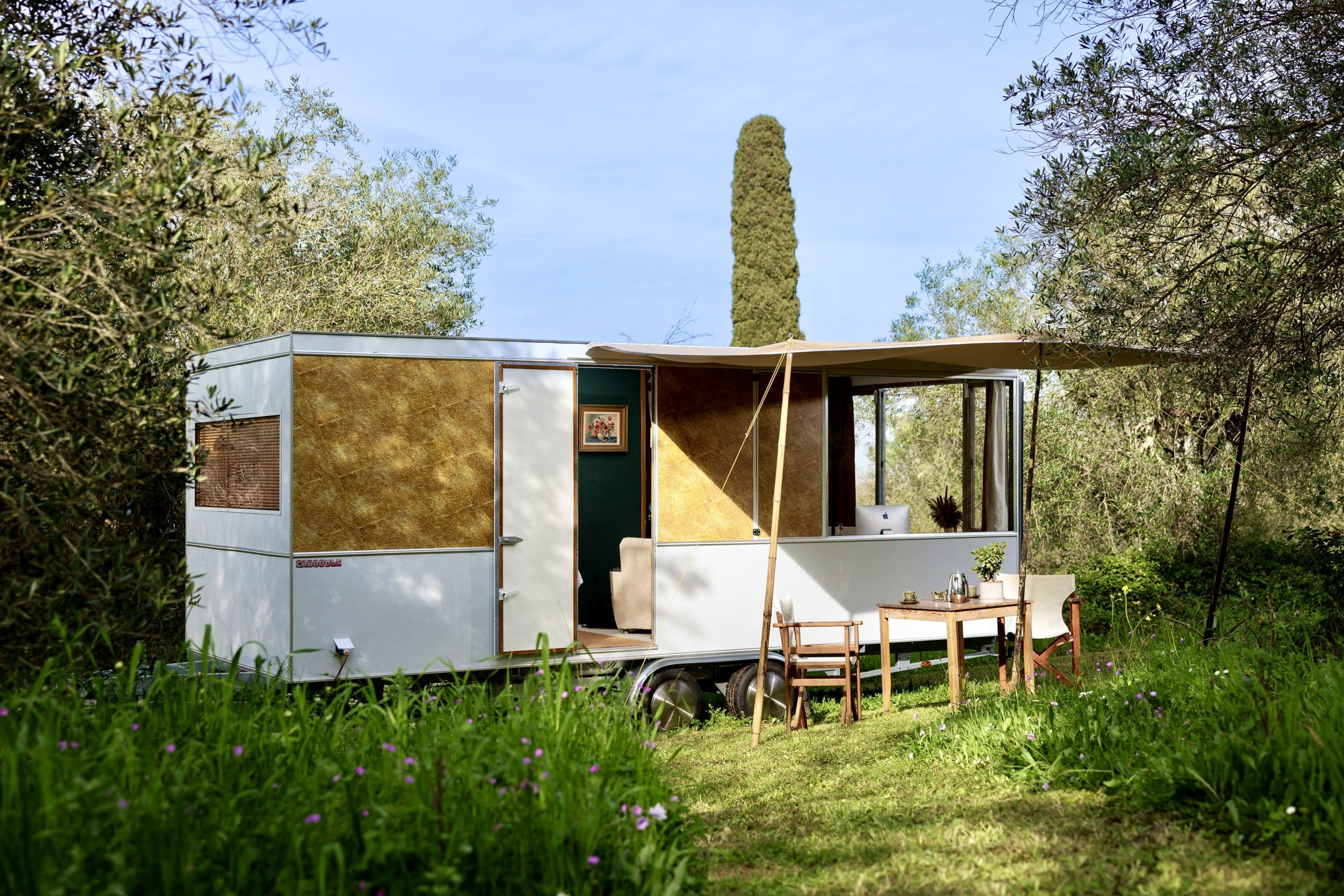

The Caboodle® Omni-functional Utility Cabin
The Caboodle® offers you a Omni-functional, mobile utility volume of 30m3 with a road legal chassis ready to create anything according to your needs.
Whether you want to combine several units into a semi-permanent house, place a cabin on the accompanying chassis to create a mobile workshop or very large transport trailer, whether you want your own colors, design or company logo?
The possibilities are virtually endless!
Caboodle® is only limited by your own imagination!
Chassis:
Overall length in total: 7500 mm
Maximum width: 2550 mm
Height: 680 mm
Complete chassis and platform Hot-dip galvanized, fully mounted and with either Dutch registration or EU. Certificate of Conformity
Cabin:
Reinforced plateau, plug & play pre fabricated, all mounting holes and locations available.
Total length: 6000 mm
Total width: 2440 mm
Total hight: 2200 mm
- Maximum and Overall height of the Caboodle® mounted on the chassis is 2820 mm
- Dry weight Caboodle® incl trailer and platform approximately 1328 kg
- Double KNOTT axle of 1800kg each; Total weight 3500kg
- Available free building capacity 2150 kg
Frame
30 mm square
Floor *:
3 panels of Plywood sandwich
recycled PET core for insulation,
polyester bottom finish
Total weight floor panels 138 kg
Max pressure: 100 kg per square meter
Roof- & front panels:
Impact resistant polyester, high gloss of-white finish
Side panels:
Aluminum , high gloss gold*** & high gloss of-white.
Windows **:
Prefabricated in aluminum framing and with 4mm UV resistant PMMA HQ Glass.
Notes:
*standard floor, optional heavy duty floor has a polyester finish both sides and a Recycled PET core with a load capacity of 250kg per square meter.
** optional: double glazing in hardened glass
***optional are individual colors and/or prints and/or (business) logo
There is a possibility that for production technical reasons there may be minimal differences in the stated dimensions
• Heavy duty noose wheel
• Aluminum rims
• Schockabsorbers mounted
• 4 telescopic heavy duty support/lifting legs */***
• Heavy duty floorpanels */****
• Galvanized structure frame *
• Double glazed windows in hardened glass *
• Kit assembly
• Individual logo or prints on request
• Insulation 30mm *
• Indoor wall and ceiling panels *****
• Dutch registration including plates
• Certificate Of Conformity (no registration)
- Your complete Caboodle® kit exists of:
- One trailer frame fully mounted with documents **
- One detachable platform mounted and fixated on the trailer.
- Insulated floor parts, plug and play
- A complete structure frame plug and play, including all doors and other frames &
including bolts and hinges. - Impact resistant polyester roof panel (off-white)
- Impact resistant polyester front panel (high gloss off-white)
- All side panels in high gloss off-white and Gold print aluminum
- All prefabricated windows with anodized aluminium frame and 3mm PMMA LQ glass
- All aluminium finishing frames
- All polymere kit, nails and drills
* all prices are subject too 21% Vat. in the configurator this is automatically added.
** the dedicated chassis can either be registered to a Dutch identity (business or private) with full registration and plates or with a Certificate of Conformity for local registration.
*** lifting capacity of 3000kg each. NOTE! Lift only on flat grounds and with stable conditions and with an operator at each leg!
**** the base pre fabricated floorpanels concists of a 21,2mm PET100 core, 2x 3,6mm multiplex and a 1,6mm gel coated woven polyester bottom mat.
The heavy duty floor concists of a 28mm PET200 core and 2x 1,6mm gel coated woven polyester mat.
***** HPL panels (244x122cm) 3mm thick, silk gloss ral 9010. Note: these panels are not pre fabricated and need to be cut to fit!
The Caboodle® 600 Cruiser (including trailer) has a dry weight of approximately 1400 kg and is approved for a total weight of 3500 kg. this provides a remaining 2100kg of free usable weight.
Caboodle® is a registered trademark and a protected design. All rights at YUPA. B.V. the Netherlands.
The Caboodle® design is carried out according Dutch law and legislation. The Caboodle® unit is considered load when mounted on the accompanying trailer.
YUPA B.V. is not accountable for differences in legislation in other countries.
Warning: the sole purpose of the optional telescopic support legs is to lift and remove the Caboodle® from its trailer in order to place it on a solid foundation. Make sure lifting is done with multiple people, preferably one operator for each support leg and on a flat surface. Also make sure the weather conditions are stable with a minimum of wind. The Support legs are NOT meant as final support base or to hold the Caboodle® whilst using or staying (in) the cabin! The responsibility for common sense use lies with the user at the given time and in no case with YUPA B.V.
